Home > Product > Rod-End Bearings > NHS Seres

Advanced search

Object
2D
PDF Download

NHS Seres

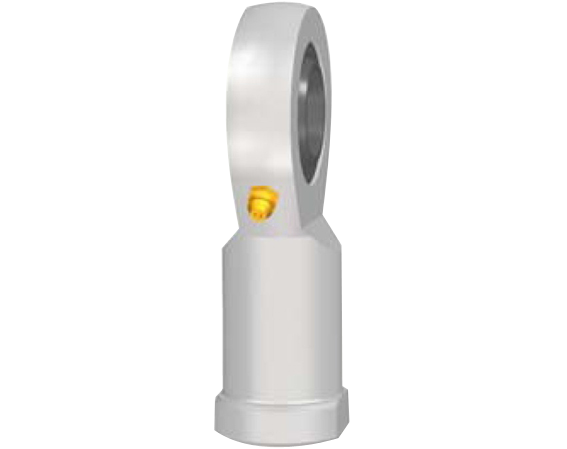

Rod ends consist of an eye-shaped head with integral shank that forms a housing for a spherical plain bearing. As a rule, rod ends are available with left or right-hand female (internal) or male (external) threads.

Rod ends are also available for specific applications

Hot tags:An nhs seres manufacturer and supplier, specialized in providing various nhs seres with excellent quality and perfect solution. If you're going to buy nhs seres with excellent service, welcome to get more details from us.

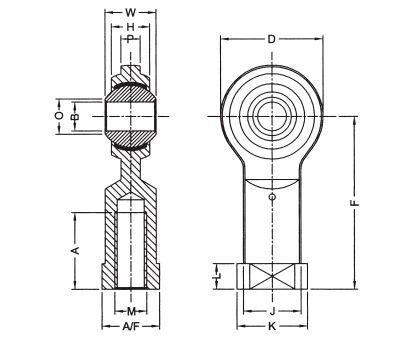

select	Inquiry	Model Number	Main Dimensions (Mm)												Permit of Angel	Static load		Weight
select	Inquiry	Model Number	B	W	O	H	D	F	K	J	L	A/F	A	Thread M	α	Radial	Angel	(g)
		NHS 5 R/L H.	5	8	7.7	5.5	16	27	11	9	3	9	12	5X0.8	13	5.7	1.5	16
		NHS 6 R/L H.	6	9	8.9	6	18	30	13	10	3.3	11	14	6X1.0	13	7	2	24
		NHS 8F R/L H.	8	12	10.4	8	22	36	16	12.5	4.5	14	17	8X1.0	13	11.6	3.5	41
		NHS 8 R/L H.	8	12	10.4	8	22	36	16	12.5	4.5	14	17	8X1.25	13	11.6	3.5	41
		NHS 10F R/L H.	10	14	12.9	10	26	43	19	15	5.5	17	21	10X1.25	13	14.5	4.8	70
		NHS 10 R/L H.	10	14	12.9	10	26	43	19	15	5.5	17	21	10X1.5	13	14.5	4.8	70
		NHS 12F R/L H.	12	16	15.4	11	30	50	22	17.5	6	19	24	12X1.25	13	17	6.5	104
		NHS 12 R/L H.	12	16	15.4	11	30	50	22	17.5	6	19	24	12X1.75	13	17	6.5	104
		NHS 14F R/L H.	14	19	16.8	12	34	57	25	20	7	21	27	14X1.5	15	24	8.2	158
		NHS 14 R/L H.	14	19	16.8	12	34	57	25	20	7	21	27	14X2.0	15	24	8.2	158
		NHS 16F R/L H.	16	21	19.3	13	38	64	27	22	7.5	22	33	16X1.5	15	28.5	10	258
		NHS 16 R/L H.	16	21	19.3	13	38	64	27	22	7.5	22	33	16X2.0	15	28.5	10	200
		NHS 18 R/L H.	18	23	21.8	15	42	71	31	25	8.5	27	36	18X1.5	15	35	12.5	288
		NHS 20 R/L H.	20	25	24.3	16	46	77	34	27.5	9	30	40	20X1.5	15	40	15	372
		NHS 22 R/L H.	22	28	25.8	18	50	84	37	30	10	32	43	22X1.5	15	52	18	475
		NHS 25 R/L H.	25	31	29.6	20	56	94	42	33.5	12	36	48	24X2.0	15	60	23	680
		NHS 30 R/L H.	30	37	34.8	24	67	110	50	40	15	41	56	30X2.0	15	81	30	1020
