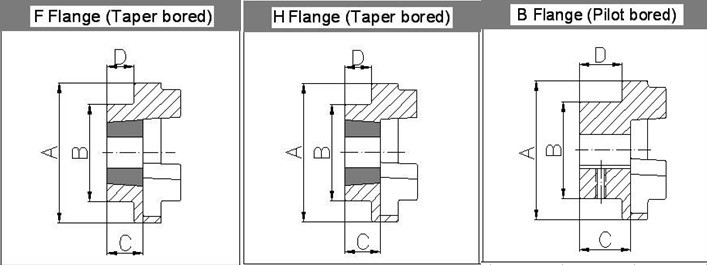

| select | Inquiry | Type | Bush size | Max. Bore | Hub Width | Shoulder Width | J | Size | Max. Bore | Pilot Bore | Keyway Screw size | Hub Width | Shoulder Width | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | C | D | |||||||||||
| 70 | 1003 | 25 | 1" | 23.5 | 20 | 29 | 70 | 32 | 8 | M6 | 23.5 | 20 | ||
| 90 | 1108 | 28 | 1 1/8" | 23.5 | 19.5 | 29 | 90 | 42 | 10 | M6 | 30.5 | 26 | ||
| 110 | 1610 | 42 | 1 5/8" | 26.5 | 18.5 | 38 | 110 | 55 | 10 | M10 | 45.5 | 37 | ||
| 130 | 1610 | 42 | 1 5/8" | 26.5 | 18 | 38 | 130 | 60 | 15 | M10 | 47 5 | 39 | ||
| 150 | 2012 | 50 | 2 | 33 5 | 23.5 | 42 | 150 | 70 | 20 | M10 | 56 5 | 46 | ||
| 180 | 2517 | 65 | 2 1/2" | 46 5 | 34.5 | 48 | 180 | 80 | 25 | M10 | 70.5 | 58 | ||
| 230 | 3020 | 75 | 3" | 52.5 | 39.5 | 55 | 230 | 100 | 25 | M12 | 90.5 | 77 | ||
| 280 | 3525 | 95 | 3 11/16" | 66.5 | 51 | 67 | 280 | 115 | 30 | M16 | 105.5 | 90 | ||
