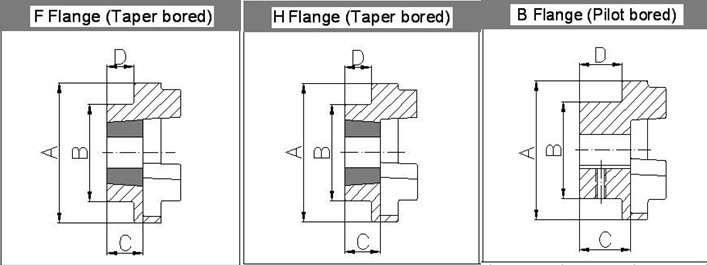

| select | Inquiry | Type | Nominal | Overall | Hub | Assemblet | Elen | Element Ring Width | Paralle Misalig | Mass | Assembled length | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nm | A | B | F | E | Kg | FF.FH | HH FB | HB BB | |||||
| 70 | 31 | 69 | 60 | 25.5 | 31 | 18.5 | 0 3 | 1 | 65.5 | 65.5 | 65.5 | ||
| 90 | 80 | 35 | 70 | 30.5 | 32 | 22.5 | 0.3 | 1.17 | 69.5 | 76.5 | 82.5 | ||
| 110 | 160 | 112 | 100 | 45.5 | 45 | 29.5 | 0.3 | 5 | 82.5 | 100.5 | 119.5 | ||
| 130 | 315 | 130 | 105 | 53.5 | 50 | 36.5 | 4 | 5.46 | 89.5 | 110.5 | 131.5 | ||
| 150 | 600 | 150 | 115 | 60.5 | 62 | 40.5 | 4 | 7.11 | 107.5 | 129.5 | 152.5 | ||
| 180 | 950 | 180 | 125 | 73.5 | 77 | 49.5 | 4 | 16.65 | 142.5 | 165.5 | 189.5 | ||
| 230 | 2000 | 225 | 155 | 85.5 | 99 | 59.5 | 0.5 | 26.05 | 164.5 | 202.5 | 239.5 | ||
| 280 | 3150 | 275 | 206 | 105.5 | 119 | 74.5 | 0.5 | 50.05 | 207.5 | 246.5 | 235.5 | ||
