PHS Series

Rod ends consist of an eye-shaped head with integral shank that forms a housing for a spherical plain bearing. As a rule, rod ends are available with left or right-hand female (internal) or male (external) threads.

Rod ends are also available for specific applications

Hot tags:An phs series manufacturer and supplier, specialized in providing various phs series with excellent quality and perfect solution. If you're going to buy phs series with excellent service, welcome to get more details from us.

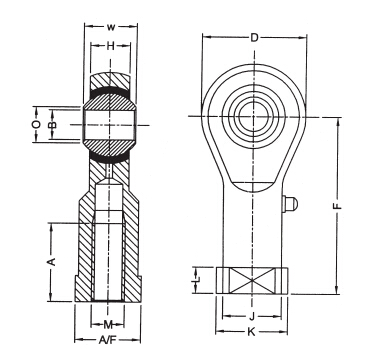

select	Inquiry	Model Number	Main Dimensions (Mm)												Permit of Angel	Static load		Weight
select	Inquiry	Model Number	B	W	O	H	D	F	K	J	L	A/F	A	Thread M	α	Radial	Angel	(g)
		PHS 5 R/L H.	5	8	7.7	6	16	27	11	9	4	9	12	5X0.8	13	5.7	1.5	18
		PHS 6 R/L H.	6	9	8.9	7	18	30	13	10	5	11	14	6X1.0	13	7	2	27
		PHS 8F R/L H.	8	12	10.4	9	22	36	16	12.5	5	14	17	8X1.0	13	11.6	3.5	46
		PHS 8 R/L H.	8	12	10.4	9	22	36	16	12.5	5	14	17	8X1.25	13	11.6	3.5	46
		PHS 10F R/L H.	10	14	12.9	11	26	43	19	15	6.5	17	21	10X1.25	13	14.5	4.8	78
		PHS 10 R/L H.	10	14	12.9	11	26	43	19	15	6.5	17	21	10X1.5	13	14.5	4.8	78
		PHS 12F R/L H.	12	16	15.4	12	30	50	22	17.5	6.5	19	24	12X1.25	13	17	6.5	115
		PHS 12 R/L H.	12	16	15.4	12	30	50	22	17.5	6.5	19	24	12X1.75	13	17	6.5	115
		PHS 14F R/L H.	14	19	16,8	14	34	57	25	20	8	21	27	14X1.5	15	24	8.2	170
		PHS 14 R/L H.	14	19	16.8	14	34	57	25	20	8	21	27	14X2.0	15	24	8.2	170
		PHS 16F R/L H.	16	21	19.3	15	38	64	27	22	8	22	33	16X1.5	15	28.5	10	230
		PHS 16 R/L H.	16	21	19.3	15	38	64	27	22	8	22	33	16X2.0	15	28.5	10	230
		PHS 18 R/L H.	18	23	21.8	17	42	71	31	25	10	27	36	18X1.5	15	35	12.5	320
		PHS 20 R/L H.	20	25	24.3	18	46	77	34	27.5	10	30	40	20X1.5	15	40	15	420
		PHS 22 R/L H.	22	28	25.8	20	50	84	37	30	12	32	43	22X1.5	15	52	18	540
		PHS 25 R/L H.	25	31	29.6	22	56	94	42	33.5	12	48	48	24X2.0	15	60	23	750
		PHS 30 R/L H.	30	37	34.8	26	67	110	50	40	15	56	56	30X2.0	15	81	30	1130
