Stainless steel miniature flange housing unit SSKFL000 / shaft: 10 mm (silver-series)
Consists of radial bearing insert SSK000 and housing SSFL000 (preassembled).
shaft fastening: 2 grub screws
material: zinc die-cast

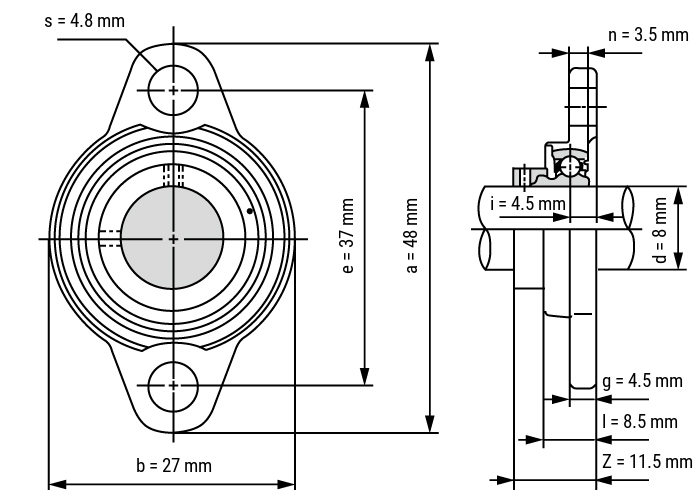

| select | Inquiry | Typ | Shaft | Dimensions in mm | Weight | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in mm | a | e | i | g | l | s | b | Z | n | ds | (kg) | |||
| SSKFL08 | 8 | 48 | 37 | 4,5 | 4,5 | 8,5 | 4,8 | 27 | 11,5 | 3,5 | M4 | 0,06 | ||
| SSKFL000 | 10 | 60 | 45 | 5,5 | 5,5 | 11,5 | 7 | 36 | 15 | 4 | M6 | 0,06 | ||
| SSKFL001 | 12 | 63 | 48 | 5,5 | 5,5 | 11,5 | 7 | 38 | 16 | 4 | M6 | 0,08 | ||
| SSKFL002 | 15 | 67 | 53 | 6,5 | 6,5 | 13 | 7 | 42 | 18,6 | 4,5 | M6 | 0,1 | ||
| SSKFL003 | 17 | 71 | 56 | 7 | 7 | 14 | 7 | 46 | 19,5 | 5 | M6 | 0,13 | ||
| SSKFL004 | 20 | 90 | 71 | 8 | 8 | 16 | 10 | 55 | 23 | 6 | M8 | 0,21 | ||
| SSKFL005 | 25 | 95 | 75 | 8 | 8 | 16 | 10 | 60 | 24,5 | 6 | M8 | 0,24 | ||
| SSKFL006 | 30 | 112 | 85 | 9 | 9 | 18 | 13 | 70 | 27 | 6,5 | M10 | 0,35 | ||
| SSKFL007 | 35 | 122 | 95 | 10 | 10 | 20 | 13 | 80 | 29,5 | 7 | M10 | 0,35 | ||
