stainless steel miniature plummer block housing unit SSKP000 / shaft: 10 mm (silver-series)
Consists of radial bearing insert SSK000 and housing SSP000 (preassembled).
shaft fastening: 2 grub screws
material: zinc die-cast

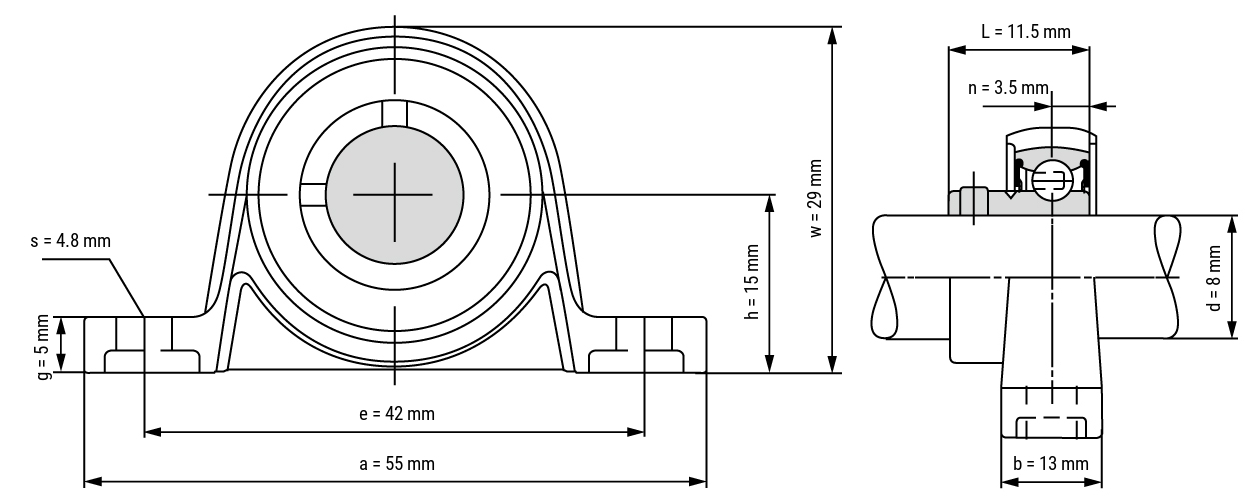

| select | Inquiry | Typ | Shaft | Dimensions in mm | Weight | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in mm | h | a | e | b | s | g | w | L | n | ds | (kg) | |||
| SSKP08 | 8 | 15 | 55 | 42 | 13 | 4,8 | 5 | 29 | 11,5 | 3,5 | M4 | 0,07 | ||
| SSKP000 | 10 | 18 | 67 | 53 | 16 | 7 | 6 | 35 | 14 | 4 | M6 | 0,08 | ||
| SSKP001 | 12 | 19 | 71 | 56 | 16 | 7 | 6 | 38 | 14,5 | 4 | M6 | 0,09 | ||
| SSKP002 | 15 | 22 | 80 | 63 | 16 | 7 | 7 | 43 | 16,5 | 4,5 | M6 | 0,13 | ||
| SSKP003 | 17 | 24 | 85 | 67 | 18 | 7 | 7 | 47 | 17,5 | 5 | M6 | 0,16 | ||
| SSKP004 | 20 | 28 | 100 | 80 | 20 | 10 | 9 | 55 | 21 | 6 | M8 | 0,23 | ||
| SSKP005 | 25 | 32 | 112 | 90 | 20 | 10 | 10 | 62 | 22,5 | 6 | M8 | 0,29 | ||
| SSKP006 | 30 | 36 | 132 | 106 | 26 | 11 | 11 | 70 | 24,5 | 6,5 | M10 | 0,45 | ||
| SSKP007 | 35 | 40 | 150 | 118 | 26 | 13 | 13 | 80 | 29,5 | 7 | M10 | 0,45 | ||
