The flanged housing unit UKF-308+H2308 belongs to the solid construction and consists of the radial insert ball bearing UK308 and the housing F308, plus adapter sleeve H2308.
The bearing insert consists of a solid spherical outer ring, an inner ring extended on both sides with conical bore as well as a cage; the flanged housing (cast iron) is equipped with two slots for fixing
It is suitable for high loads and speeds, also in case of alternating direction of rotation; misalignments can be equalized by spherical bearing seat
The cast iron offers an anti-corrosion protection by its passivated and lacquered surfaces
its temperature resistance ranges from -20°C up to +100°C
Fixing of the inner ring by concentric adapter sleeve

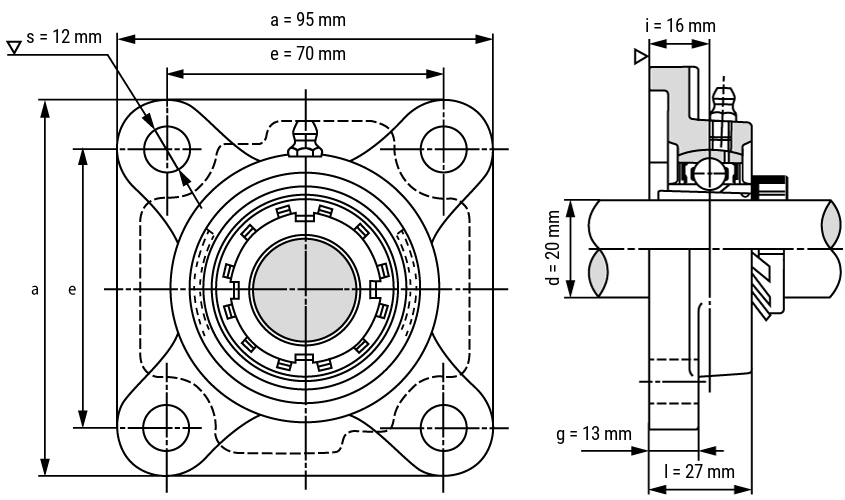

select | Inquiry | Typ | Shaft | Dimensions in mm | Weight | |||||
---|---|---|---|---|---|---|---|---|---|---|
in mm | a | e | i | g | l | s | (kg) | |||
UKF205 | 20 | 95 | 70 | 16 | 13 | 27 | 12 | 0,8 | ||
UKF206 | 25 | 108 | 83 | 18 | 13 | 31 | 12 | 1,2 | ||
UKF207 | 30 | 117 | 92 | 19 | 15 | 34 | 14 | 1,6 | ||
UKF208 | 35 | 130 | 102 | 21 | 15 | 36 | 16 | 1,9 | ||
UKF209 | 40 | 137 | 105 | 22 | 16 | 38 | 16 | 2,4 | ||
UKF210 | 45 | 143 | 111 | 22 | 16 | 40 | 16 | 2,7 | ||
UKF211 | 50 | 162 | 130 | 25 | 18 | 43 | 19 | 3,7 | ||
UKF212 | 55 | 175 | 143 | 29 | 18 | 48 | 19 | 4,3 | ||
UKF213 | 60 | 187 | 149 | 30 | 22 | 50 | 19 | 5,8 | ||
UKF215 | 65 | 200 | 159 | 34 | 22 | 56 | 19 | 7,1 | ||
UKF216 | 70 | 208 | 165 | 34 | 22 | 58 | 23 | 8,2 | ||
UKF217 | 75 | 220 | 175 | 36 | 24 | 63 | 23 | 9,8 | ||
UKF218 | 80 | 235 | 187 | 40 | 24 | 68 | 23 | 12 | ||
UKF305 | 20 | 110 | 80 | 16 | 13 | 29 | 16 | 1,3 | ||
UKF306 | 25 | 125 | 95 | 18 | 15 | 32 | 16 | 1,7 | ||
UKF307 | 30 | 135 | 100 | 20 | 16 | 36 | 19 | 2,1 | ||
UKF308 | 35 | 150 | 112 | 23 | 17 | 40 | 19 | 2,8 | ||
UKF309 | 40 | 160 | 125 | 25 | 18 | 44 | 19 | 3,7 | ||
UKF310 | 45 | 175 | 132 | 28 | 19 | 48 | 23 | 4,7 | ||
UKF311 | 50 | 185 | 140 | 30 | 20 | 52 | 23 | 5,8 | ||
